Engineered Products
When construction joints, precast connections, or staged pours break the run of your reinforcement, Atex Supplies’ Engineered Products keep steel connected, compliant, and structurally sound. Our range of couplers, continuity boxes, threaded anchors, and stud inserts is engineered to enhance productivity, safety, and structural integrity on residential, commercial, and civil projects across Sydney.
From Standard Couplers and QuikBox reinforcement continuity boxes to Quick Anchors and BPS Studs, every product in our Engineered Products range is manufactured to Australian Standards and paired with ACRS-Certified reinforcing steel.
Whether you’re forming a construction joint, connecting precast panels, or anchoring a slab to a core wall, our team pairs the right engineered product with hands-on technical support, so it’s specified correctly and performs on site.
If your project demands engineered products for steel reinforcement that connect, comply, and perform the first time, Atex Supplies delivers.
Explore our Engineered Products range and request a quote today.
Our Engineered Products Range
Atex Supplies stocks a complete range of reinforcement continuity solutions to suit construction joints, precast connections, and anchoring applications – all backed by Australian Standards compliance. Our range includes:

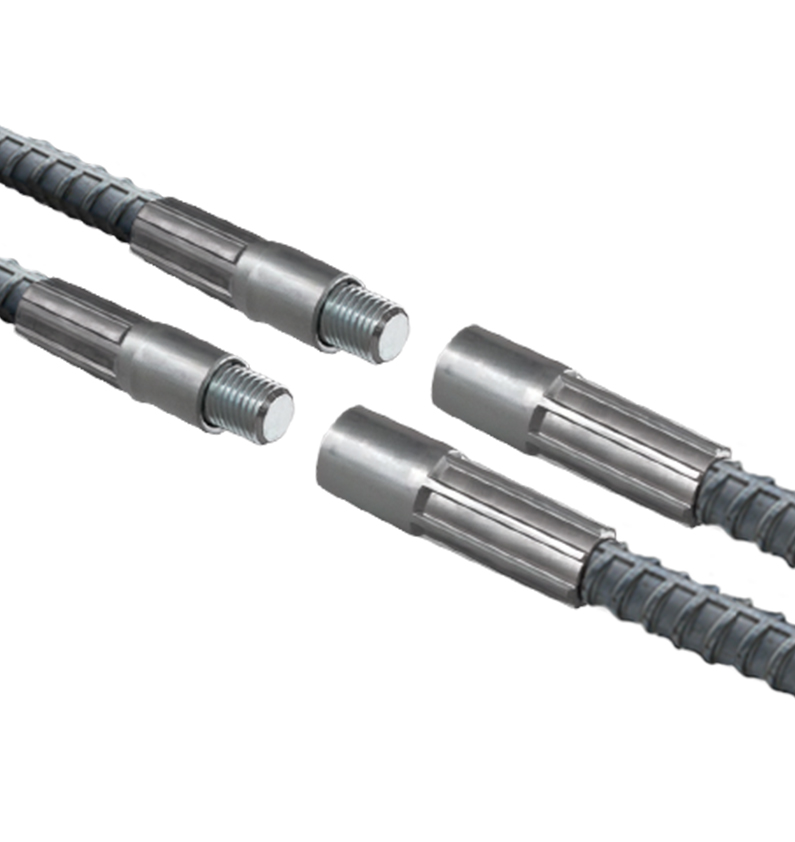

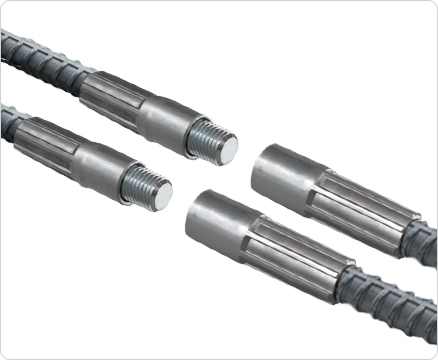

Standard Couplers
Cast in-situ forged steel threaded couplers that connect reinforcing bars across construction joints, forming a continuous, mechanically spliced connection between pours.

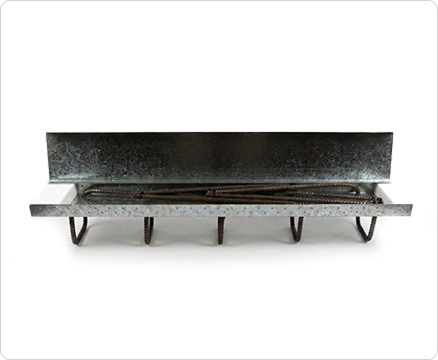

QuikBox
A prefabricated, fully sealed reinforcement continuity box (commonly known as a ‘pull-out box’) containing Grade 500N ACRS-approved, pre-bent reinforcing bars. Fixed to formwork before the pour, it allows quick, high-quality reinforcement continuity at construction joints without cutting into cured concrete.

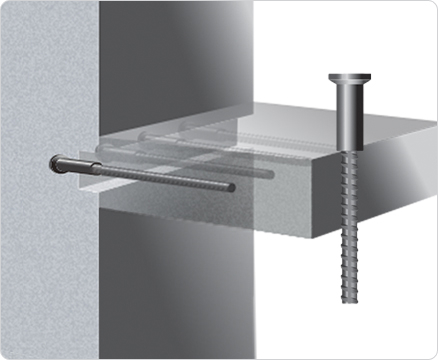

Quick Anchors
Cast in-situ threaded insert anchors using Grade 500N reinforcing bar, used to connect slabs and beams to walls and cores. Supplied in galvanised steel boxes or on reusable rebate boards for fast, repeatable installation.

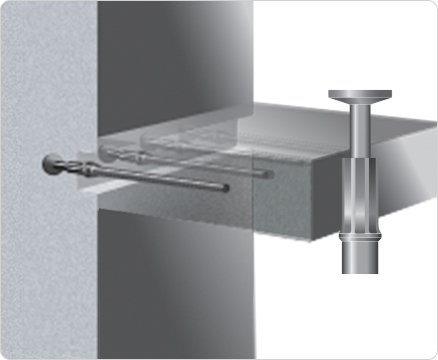

BPS Studs
A footed stud insert with a female coupler swaged to the end, accepting a male starter bar to connect pours – predominantly used between core walls and floor slabs, and to connect precast wall panels to concrete floors.
We supply a wide range of bar diameters and box configurations to match your structural engineering schedule.
What Are Engineered Products and Why Are They Essential for Steel Reinforcement Continuity?
Concrete is rarely poured in one continuous run. Construction joints, precast connections, staged slabs, and anchor points all create breaks in reinforcement that need to be reconnected safely and to specification.
Atex Supplies’ Engineered Products solve this by giving builders, engineers, and contractors a quick, safe, and repeatable way to achieve reinforcement continuity. They:
● Maintain structural continuity across construction joints and staged pours
● Remove the need to cut into cured concrete to expose reinforcement
● Speed up installation with prefabricated, ready-to-fix systems
● Provide a shear key between the first and second concrete pours
● Are manufactured to AS/NZS 4671:2001
Engineered Products are used across:
● Jumpforms – wall to floor connections
● Floor slab to floor slab – crane or other penetrations
● Wall to wall – external to internal walls
● Wall to slab – core or lift core connections
● Precast concrete elements to wall or slab – in-situ concreting
● Wall to stairwell or landings
When specified and installed correctly, Engineered Products keep reinforcement – and the structure it supports – continuous, compliant, and safe.
How to Choose The right Engineered Products for Your Project
Selecting the right Engineered Product starts with your structural engineering drawings and reinforcement schedule. Key considerations include:
Bar diameter and spacing
Type of connection (construction joint, precast connection, or anchor point)
Embedment depth and pull-out load requirements
Box or insert configuration (straight, angled, or cogged bar)
Wall or slab thickness and edge distance
If you are unsure about specifications, our team can help match products to your plans.
ACRS Certified
Strength You Can Trust
Every Engineered Product supplied by Atex is backed by:
Fully sealed, taped systems designed to prevent concrete ingress
Grade 500N
ACRS-certified reinforcing bar with a minimum yield of 500MPa
Manufacture and bending to comply with AS/NZS 4671:2001
Design and load capacity data calculated to AS 3600 and AS 3850.1
ACRS (Australasian Certification Authority for Reinforcing and Structural Steels) certification means the reinforcing steel inside every coupler, box, anchor, and stud is independently verified for strength, ductility, and reliability.
For construction joints, precast connections, or anchor points on residential, commercial, or civil projects, Engineered Products protect your build and your reputation.
Licences, Certifications & Memberships
Compliance and safety are central to everything we do
Grade 500N
ACRS Approval
Reinforcing bar used across our Engineered Products range is Grade 500N ACRS-approved, meeting AS/NZS 4671:2001 requirements.
AS 3600 & AS 3850.1
Design Compliance
Load capacity and anchor design data align with AS 3600 Concrete Structures and AS 3850.1 for cast-in fixings.
Australian Steel Institute (ASI) Industry Listing
Atex Supplies is listed in the Australian Steel Institute’s industry directory, reflecting our standing within the structural steel and building products industry.
Fully Sealed,
Taped Systems
Our continuity boxes and inserts are fully taped and sealed to prevent concrete ingress and protect reinforcement until it’s needed
Why Builders Choose
Atex Supplies
Certified & Compliant
ACRS-certified reinforcing steel and Australian Standards compliance ensure reliability and peace of mind.
Industry Experience
Australian-owned and family-operated, with deep understanding of residential and commercial construction requirements.
Reliable Supply
Consistent stock levels and efficient distribution across Sydney.
Flexible Ordering
Supply solutions for both large-scale projects and smaller construction jobs.
What Our Customers Say
FAQs About Engineered Products
What are Atex Supplies’ Engineered Products?
Our Engineered Products are reinforcement continuity solutions – Standard Couplers, QuikBox continuity boxes, Quick Anchors, and BPS Studs – used to connect reinforcing steel across construction joints, precast connections, and anchor points.
Are your Engineered Products manufactured to comply with AS/NZS 4671:2001.?
Yes. Reinforcing bar used across our Engineered Products range is Grade 500N ACRS-Certified and manufactured to comply with AS/NZS 4671:2001.
What is a QuikBox and how does it work?
QuikBox is a prefabricated, fully sealed reinforcement continuity box fixed to formwork before the pour. Once the concrete is cast and the lid removed, the pre-bent reinforcing bars inside are bent out and lapped with the main reinforcing, maintaining continuity across the joint.
What is the difference between Quick Anchors and BPS Studs?
Quick Anchors are cast-in threaded insert anchors used to connect slabs and beams to walls and cores. BPS Studs are footed stud inserts with a swaged female coupler that accept a male starter bar, commonly used between core walls and floor slabs, or to connect precast panels to floors.
Where can I buy Engineered Products in Sydney?
Atex Supplies distributes Engineered Products across Sydney, with pickup available in Riverstone.
Build Continuity with Confidence Using Certified Engineered Products
Contact our team today for expert advice or request a quote.
